CNC Bending Machine - HG SSP presses

Features:

  • High performance electro-hydraulic system

  • DELEM CNC control (axis control, bending angle, working pressure)

  • Precision positioning with servo control

  • Robust construction and long service life



Send an inquiry for more information

or call +381 64 849 45 10

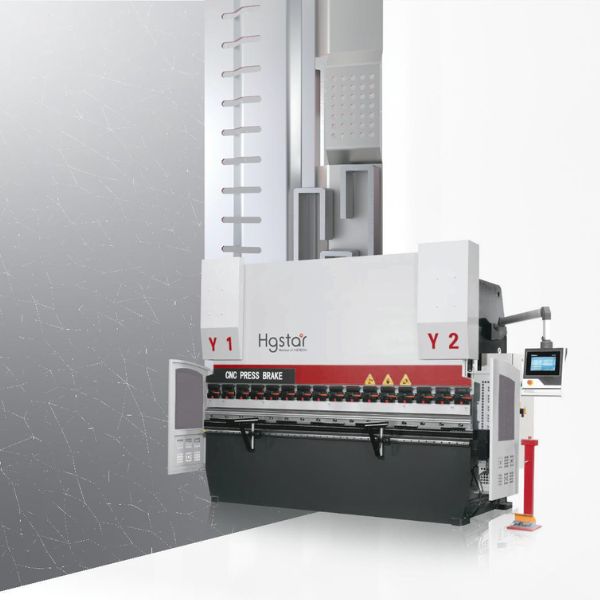

CNC Bending Machine - HG SSP presses

CNC Metal Bending machines - Main Configuration

IDX Iterms PCS
1 Control Systerm One set Holland DELEM DA53T Systerm

2 Servo motor and drive One set Nanjing Eston

3 Hydraulic pump  One set America SUNNY

4 Hydraulic valve One set BOSCH-REXROTH

5 Ball Screws One set Taiwan,

6 Linear guideway One set TaIwan

7 Connector One set Germany

8 Sealing ring One set Japan NOK or Geermany

9 GIVI  One set Spain FAGOR

10 Main electrical components One set Schneider

11 Oil cylinder One set Jining taifeng

12 MDSLSBS One set Nanjing Eston

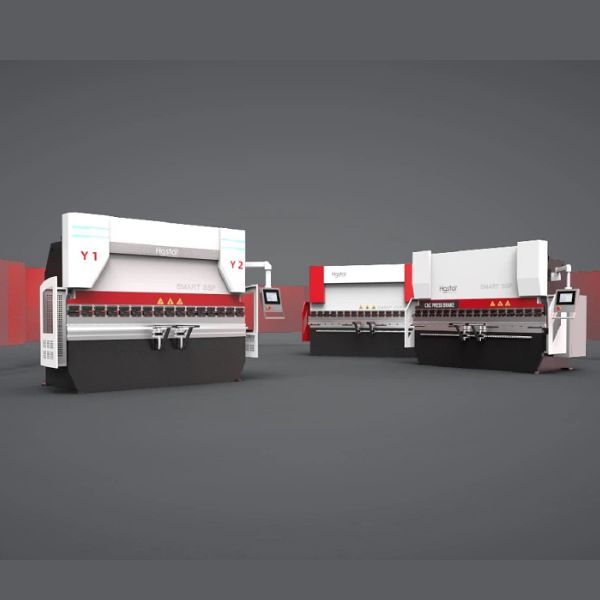

CNC Metal Bending machines - Main Configuration

CNC metal bending machines - SSP Serija - technical parameters

IDX Units 63T/2500 100T/3200 100T/4000 160T/3200 160T/4000 200T/3200 200T/4000
Max Nominal
Pressure		 KN 630 1000 1000 1600 1600 2000 2000
Bending length mm 2500 3200 4000 3200 4000 3200 4000
Distance between
uprights		 mm 2000 2700 3500 2700 3500 2700 3500
Throat depth mm 350 400 400 400 400 400 400
Cylinder Stroke mm 150 200 200 200 200 200 200
Maximum
opening height		 mm 350 420 420 420 420 420 420
Slide block fast
down speed		 mm/s 110 160 160 100 100 100 100
Slider working
speed		 mm/s 10 10 10 10 10 10 10
Slider working
speed		 mm/s 110 130 130 100 100 100 100
Main power kw 5 8.7 8.7 13.2 13.2 13.2 13.2
Oil pump out-let
quantity		 ml/r 13 16 16 25 25 25 25
CNC control system Delem CNC control system for Y1, Y2, X, R axes and mechanical deflection IDX compensation

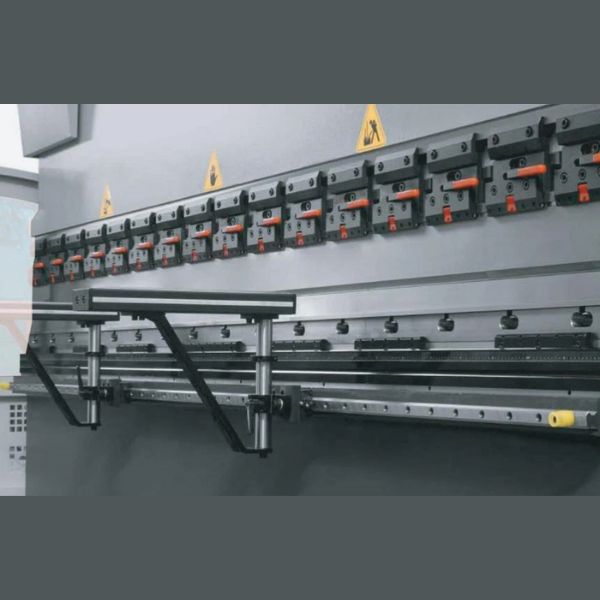

CNC metal bending machines - SSP Serija - technical parameters

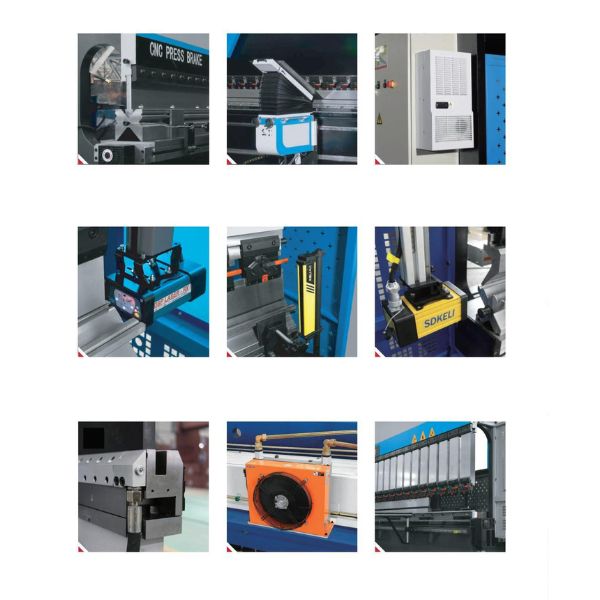

CNC metal bending machines - Accessories



  • Multiple molds for different work requirements

  • Front support for bending thin and wide sheets

  • Hydraulic mold clamping – quick tool change

  • Industrial air conditioner for stable working temperature

  • Photoelectric safety systems and light barriers

  • Protective modes of operation (eg box elements, automatic braking)

  • High efficiency hydraulic oil coolers



CNC metal bending machines - Accessories
